Thor High Voltage

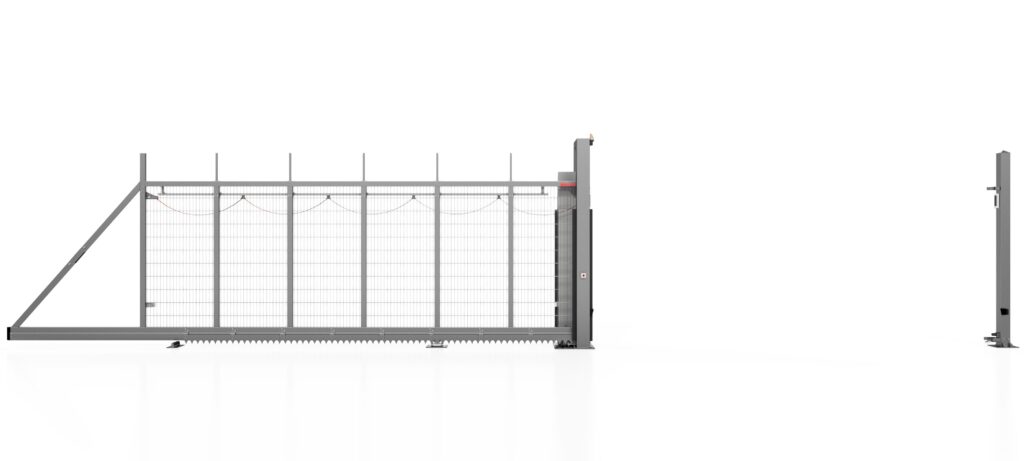

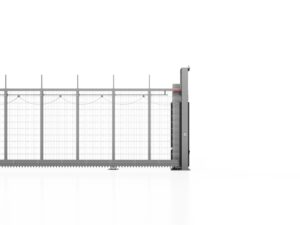

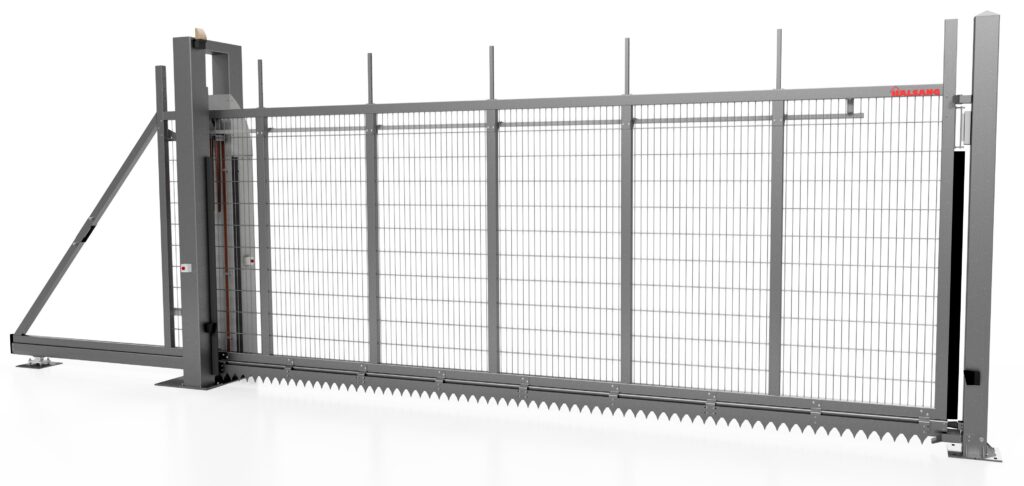

Cantilever sliding gate for Electric power industry applications.
Construction
The guide post and end post
The standard one sided end post is made of square tube and is equipped with a catcher, electromagnetic lock and a base to guide and support the wing when the gate is closed.

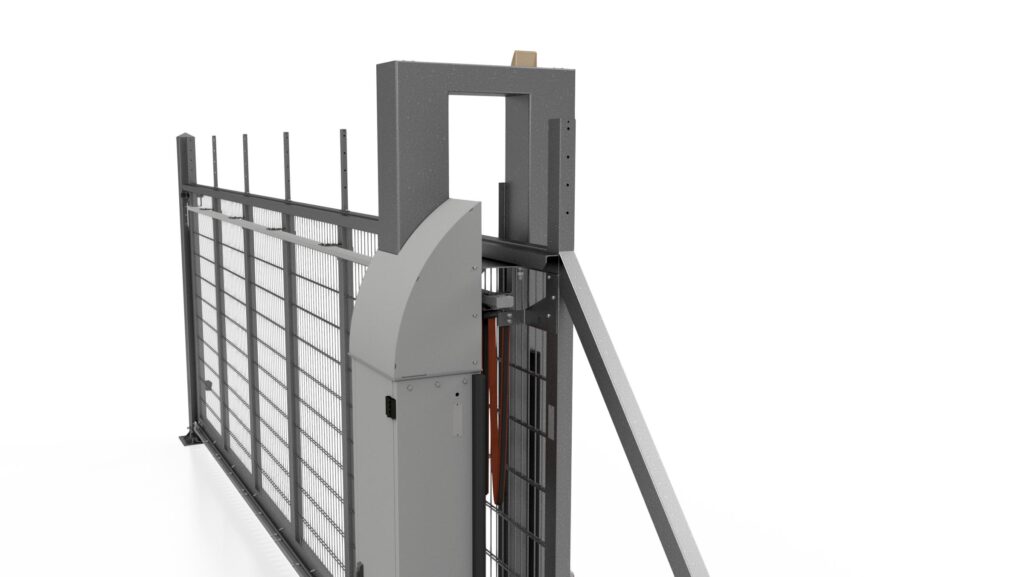

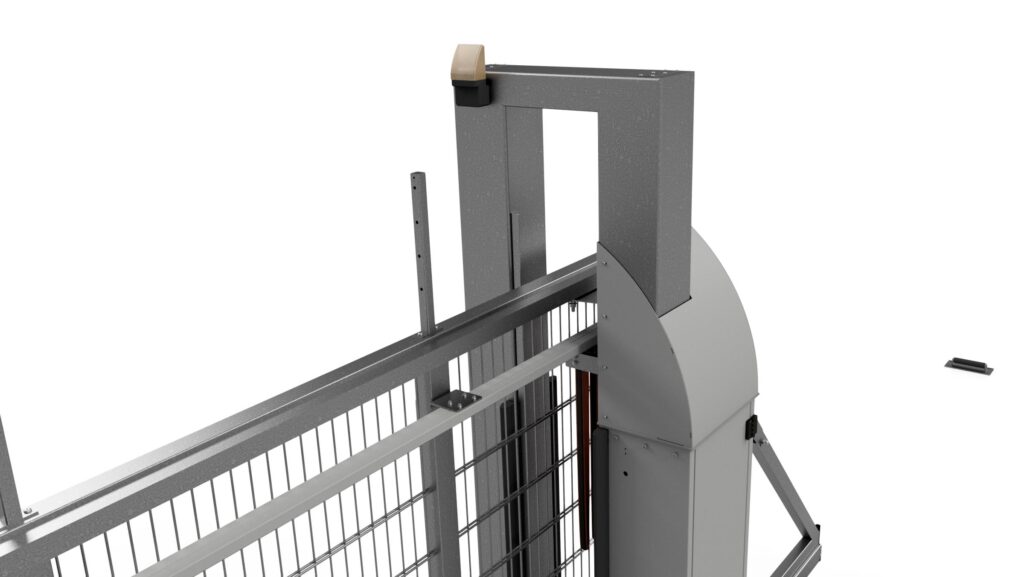

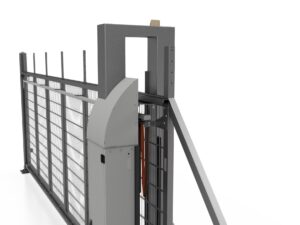

Guide post for automatic gates is equipped with coated steel cabinet to protect all electric connections and electronic devices.
Four pieces of wired Safety edges on the cabinet and guiding post. Cabinet top has a rounded steel plate roof to prevent climbing. Steel plate bolted to the cabinet from the inside of the cabinet to cover lower part of the cabinet. Raised cabinet door by 400 mm from the ground.
Guide roller sets and guide rollers
The wing is supported and guided by 2 roller sets with ball bearings, integrated in the underbeam. One roller set is mounted on the base plate of the guide post and the second independent roller set is installed at the rear end of the foundation. Both roller sets support the underbeam in order to guarantee perfect guiding of the gate wing.

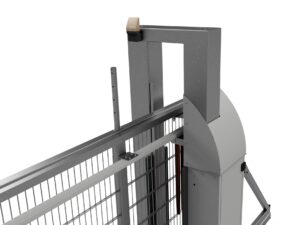

Lateral guiding of the wing is done by 2 horizontal guide rollers with ball bearings; guide on the top of the guide post.
All rollers are made of high quality Polyamide. The material guarantees longevity and silent running of the gate wing.
Coating
Posts and wing are hot dip galvanized or additionally powder coated. The standard RAL colors are RAL 9007, RAL 9005, RAL 6005. Other colors are available on request.
For automatic versions, the cabinet for electronic devices is powder coated in standard colour RAL 9007.
Hot Dip Galvanized Hot dip galvanized according to EN-ISO 1461.
Powder coating Posts and wing can be polyester powder coated as an option.
Thickness of powder coating: between 60 μm and 80 μm.
Mode of operation
Motorized with Halsang Sleipner control, incl frequency modulator with soft start and stop for optimal operation. Fully pre-assembled when delivered, allowing an easy and fast installation on site. Opening/closing speed: 0,4 meter/second.
Steering and electronics installed in a full height cabinet. TÜV approved and in accordance with EN 13241-1.
For manual versions, the gates are equipped with a special lock and a handle for sliding gates.
Features
- Completely welded steel construction in HDG version.

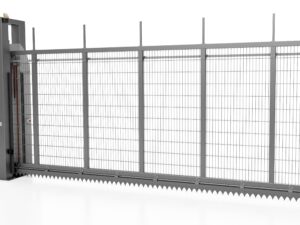

- Welded double bar panel 8/6/8 “Mesh 50×200 mm” as standard. “Mesh 50×50 mm” as optional.
- Easy access to the cabinet (coated in RAL 9007) for service and maintenance.
- Extra external support roller for openings above 6 meter.
- Max standard opening width 6 meter.
- Standard height 2 430 mm + 425 mm “barb wire holder tubes”.
- TÜV approved and in accordance with EN 13241-1.
- Other dimensions on request.
- Electromagnetic lock “540 kg” holding force.
- Reed switches at the end of the wing and on the cabinet “Automatic version”.
- Reed switch on the end post on the “Manual version”.

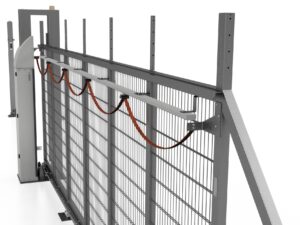

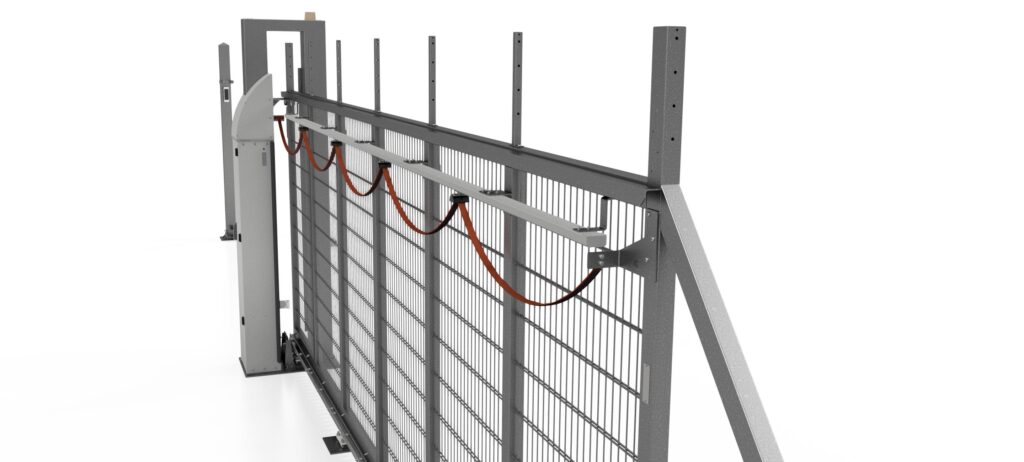

- Grounding system with copper braided flexible connectors 35 mm2.

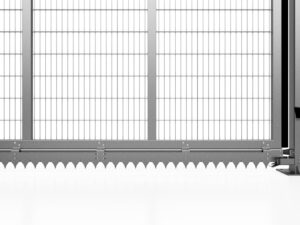

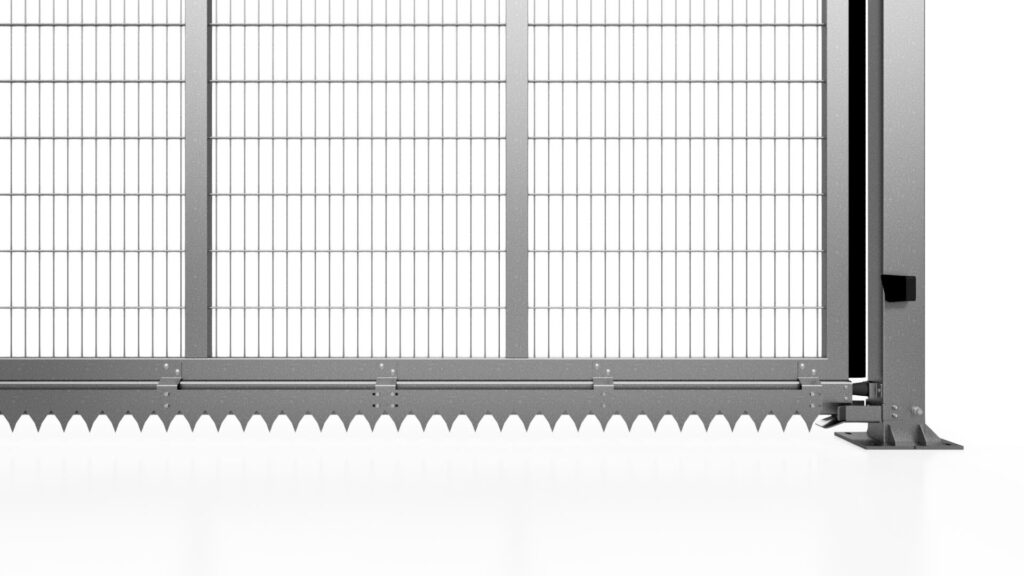

- Under crawling protection strip on the bottom of the wing.
- All safety equipment “safety edges, Photocells” are wired.
- Induction loop detector as standard
Technical Description
Options
- ELKA EST 2004 K motor “Without frequency modulator”.
- Overclimbing protection – toothed strip on top of the leaf
- Halsang Monitoring system
- Fencing connection on posts
- Induction loop detectors
- Powder coated in RAL paint colors.
- Special infill upon request
- Key switch
- Traffic light
- Illumination of free passage
- Barbed wire / Concertina razor wire
- Others
